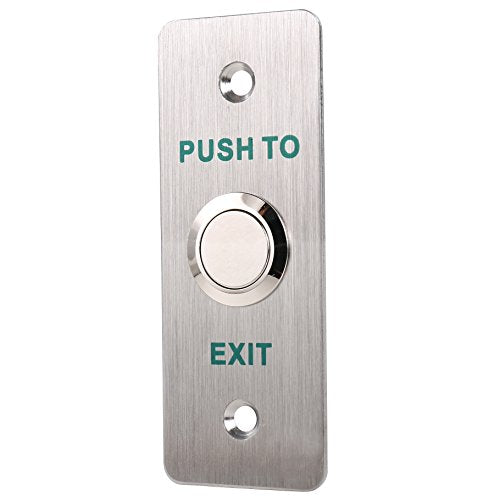

YLI Electronics Push to Exit Button Switch

Package:
1 x Exit Button

Model Number:PBK-814A

Brand Name:YLI

Origin:China

• Door release buttons are the most common and the most frequently used in the access control systems.
• They are often used in public authorities, banks, large,small and medium-sized enterprises, department stores and residences.
•
• Technical Parameter

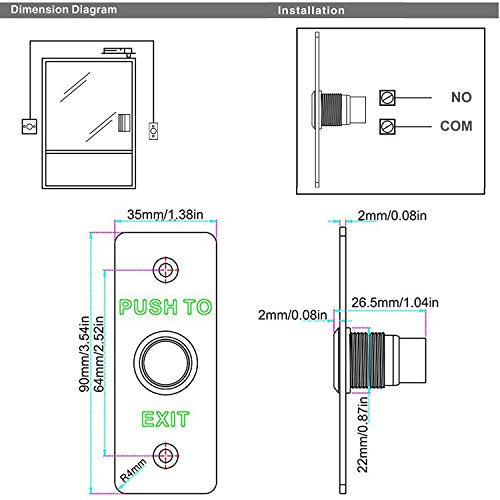

  • Dimensions: 90Lx35Wx31H(mm)
  • Standard Structure: Stainless steel Panel, Steel Button
  • Contact Rating: 3A@36VDC Max
  • Output Contact: NO/COM
  • Mechanical Life: 500,000 times
  • Suitable for: Hollow door
  • Operating Temperature: 10～+55℃(14-131F)
  • Suitable Humidity: 0-95% (RH)
  • Panel Material: Brushed stainless steel panel
